履帶式滾筒篩選機
營建、事業廢物 生活垃圾篩分 首選機台
| 引擎馬力 | CAT C4.4 – 137HP Stage V | 110HP Tier 4 Final | 131HP Stage IIIA (Constant Speed) |
| 篩桶直徑/長度 | 2,000mm x 5,500mm |
| 輸出量 | 每小時50-60噸 |
| 破碎尺寸 | 40mm-200mm (依篩網尺寸) |
| 機身重量 | 24,000kg |

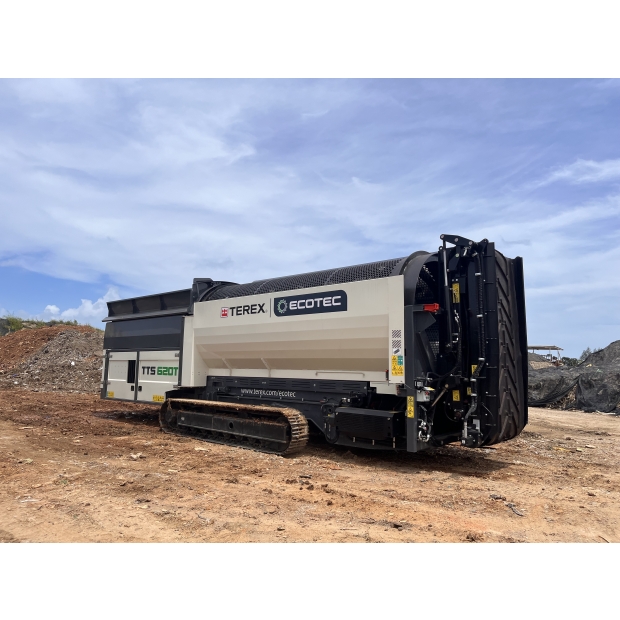

Ecotec 的 TTS 620T 履帶式滾筒篩搭載CAT引擎和液壓驅動系統,結合先進的材料加工控制系統,可提供每小時近120立方米的產量,篩網尺寸從10mm-100mm皆可任選,TTS620不只提供最高效率,同時消磨損耗低及低保養成本,是老闆們賺錢的最佳工具機台。 TTS620篩選機非常適合篩選營建尾料、廢土、垃圾活化工程。
一鍵式啟動的操作介面讓人員能簡易操作使用,大大提升運轉效率。搭配TEREX ECOTEC 相同系統之破碎機和篩選機,操作及保養共享同一個系統及耗材料號,一站式到位,現為台灣各家環保公司首選的主流履帶式篩選機。

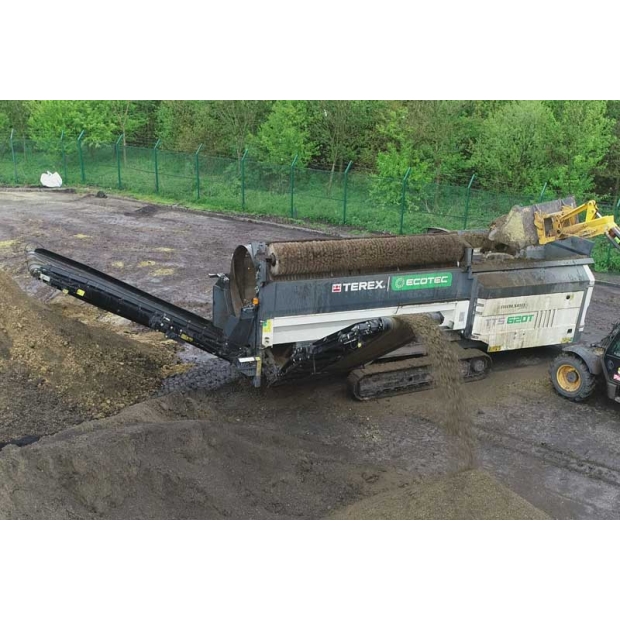

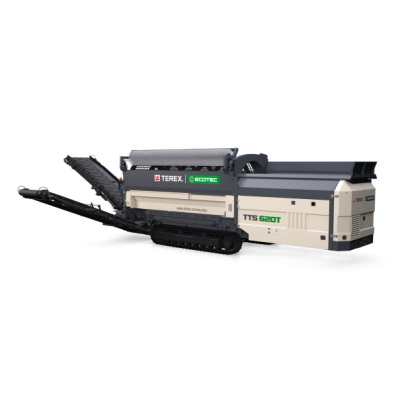

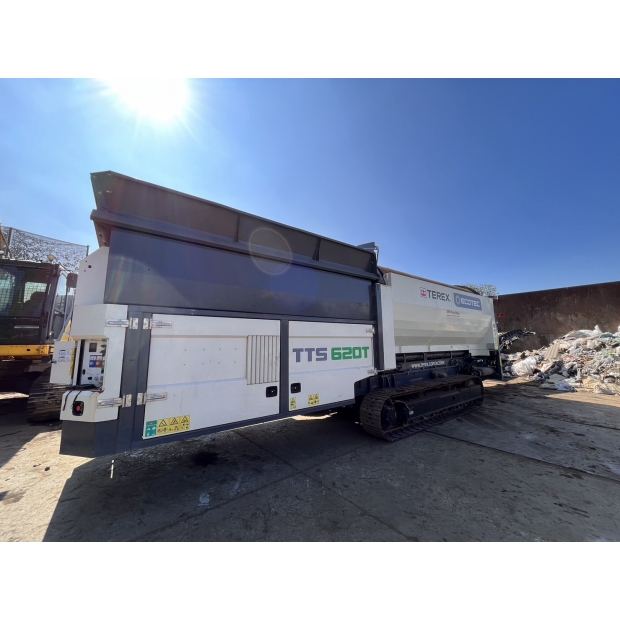

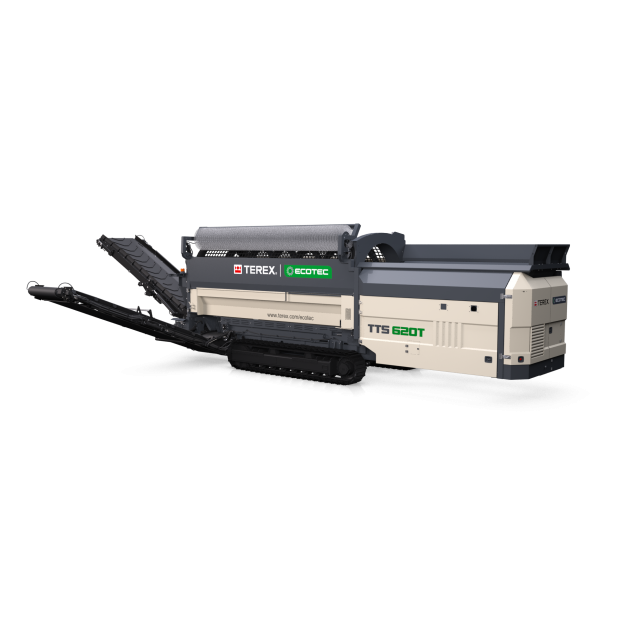

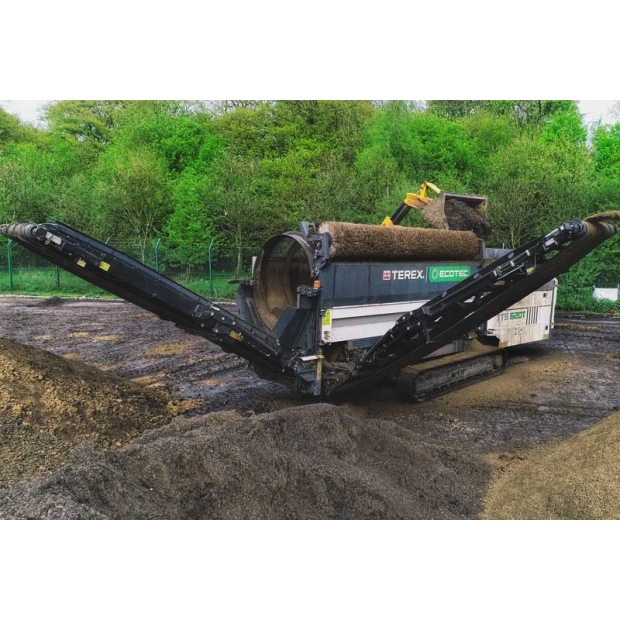

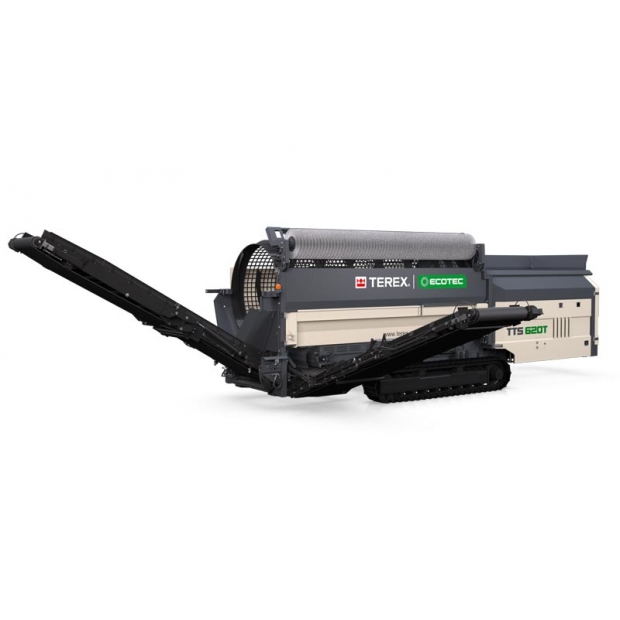

Ecotec’s TTS 620T Tracked Trommel Screen features a highly efficient engine and hydraulic drive system combined with advanced material processing control system offer maximum production combined with minimum costs. It is ideally suited for screening compost, biomass, soil, gravel & waste.
An intuitive push button control panel allows the operator to easily configure the machine to suit the required application whilst the intelligent feeder control system continually adjusts the feeder speed to optimise screening rates. Special consideration has been given to minimise change out time for the screening drum. The process, which takes a matter of minutes, places the TTS 620T as a market leader. The machine has also been designed to accept a number of other manufacturers screening drums allowing customers to smoothly integrate the TTS 620T into established fleets.
應用範圍
有機與生物質處理
堆肥、有機廢棄物、木屑、碎枝
土壤與礦物材料
表土、砂土、砂礫、惰性細料
廢棄物與回收處理
一般廢棄物、工業廢料、混合回收物
建築與拆除應用
建築廢棄物、拆除殘料、混合惰性材料
設備優點
-
高效篩分系統:大尺寸滾筒搭配穩定給料控制,提升處理量與篩分效率
-
模組化設計:篩鼓與輸送帶可快速更換,降低維修時間與停機成本
-
優化物料流向:全封閉給料箱與高效密封設計,減少物料散落
-
維護便利性高:大型檢修門與良好可達性設計,提升保養安全與效率
-
穩定耐用結構:重型底盤與可靠動力配置,適合長時間連續作業
-
環保與操作友善:高效冷卻與防護設計,確保設備穩定運轉並降低操作負擔
