錘式木材破碎機
| 引擎馬力 | Scania DC16 670HP/500kW |
| 進料區 | 780mm x 1,700mm |
| 破碎粒徑 | 80mm-150mm |
| 破碎輸出 | 每小時40噸 |
| 機身重量 | 35,600kg |

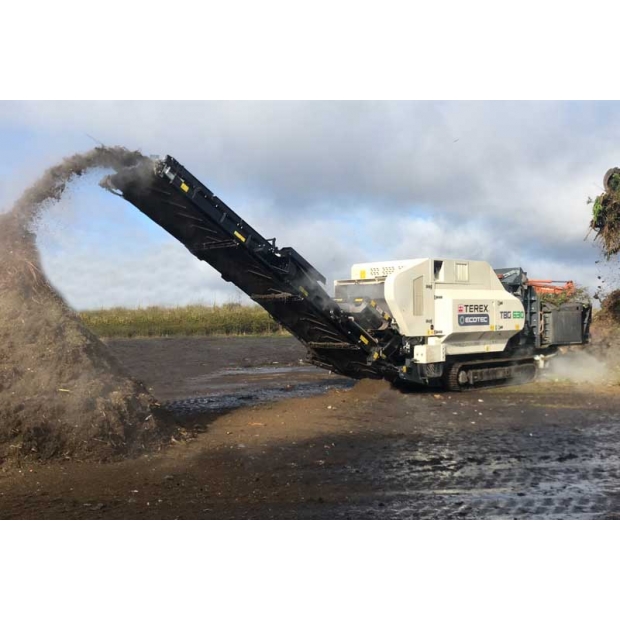

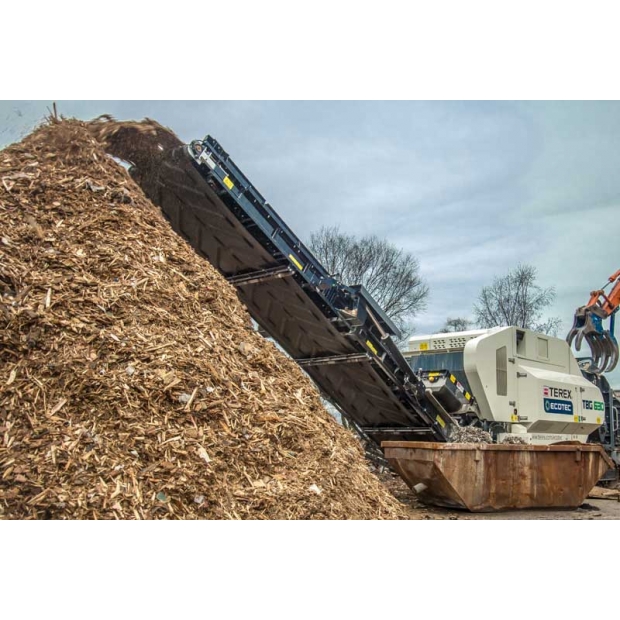

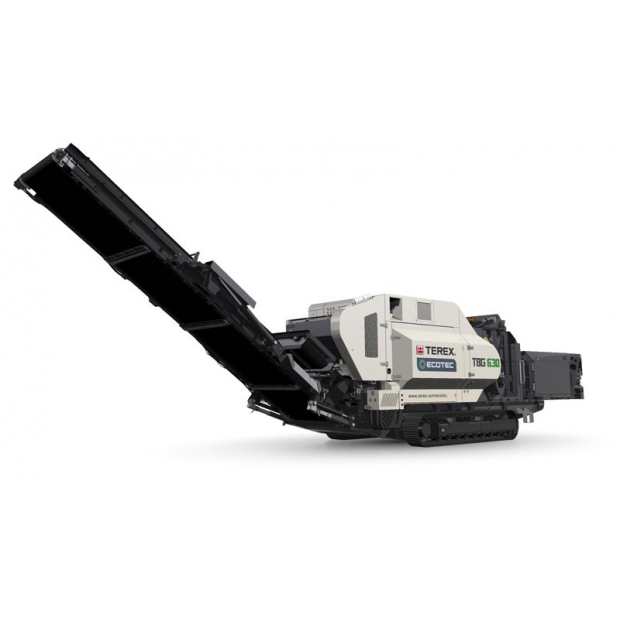

高速錘式破碎機
TBG 630 高速破碎機是適用於破碎各種樹木資材(含風災後廢樹枝、農業廢棄物等)、生質材的高效破碎機。本設備採用Scania V8引擎661 Hp的引擎動力，為產出完整且高效的破碎粒徑產品。 前開式進料器使用重型拖鏈、強大的進料輪和不受限制的進料器設計，以有效利用 1,100 毫米直徑 x 1,750 毫米寬的擺錘刀軸。 能針對要破碎的材料配置配碎刀軸和特定尺寸篩網，確保滿足客戶端最終產品的粒徑要求。
TBG 630 配有智能異物排除系統，可偵測到金屬異物並排除，能有效降低意外損壞刀軸風險。 而 5.1m 輸送帶卸料高度為市面上能最佳舉升高度之設備，有效提升現場堆料範圍。
TBG 630 High Speed Shredder is the ultimate processing machine for medium to large scale biomass and green waste processors. Powered by a 661HP V8 Scania engine, the TBG 630 has been designed to give operators unrivalled production rates and ease of maintenance. The open fronted feeder uses heavy duty drag chains, a powerful feed wheel and an unrestricted feeder design to effectively utilise the 1,100mm diameter x 1,750mm wide swinging hammer rotor.
Metal contaminants are always a concern when using a high speed machine; the TBG 630 has an intelligent screen opening system to quickly discharge such contaminants reducing the risk of accidental damage. Industry leading conveyor discharge height of 5.1m maximises stockpile capacity and allows loader operators to easily remove processed material.
